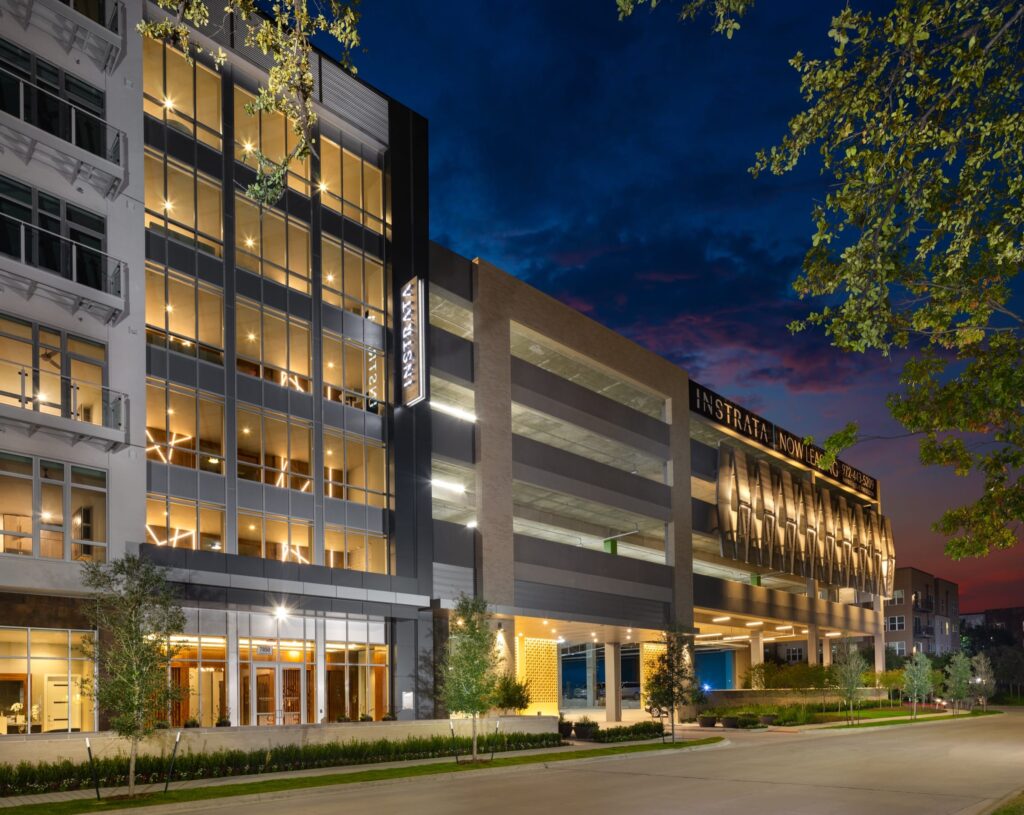

At Legacy West in Plano, Instrata and its sister community, The Grand, are shaped through a collaboration led by Gensler and JHP, creating a walkable city within a city rooted in residential life. Instrata defines the northern entry to the district, where refined one- and two-bedroom homes rise above the activity with a calm, elevated presence. Thoughtful amenities and attentive service support daily rhythms, while just across the way, Legacy Hall adds energy, flavor, and connection to the neighborhood beyond the front door.
Instrata at Legacy West
Project Details:
Client:
Columbus Realty Partners
Location:
Plano, TX
Project Data:
- 161 units
- 1.4 acres
- 115.00 units per acre
Design Architects: Gensler
Type:
Click highlighted areas to explore projects
Challenge

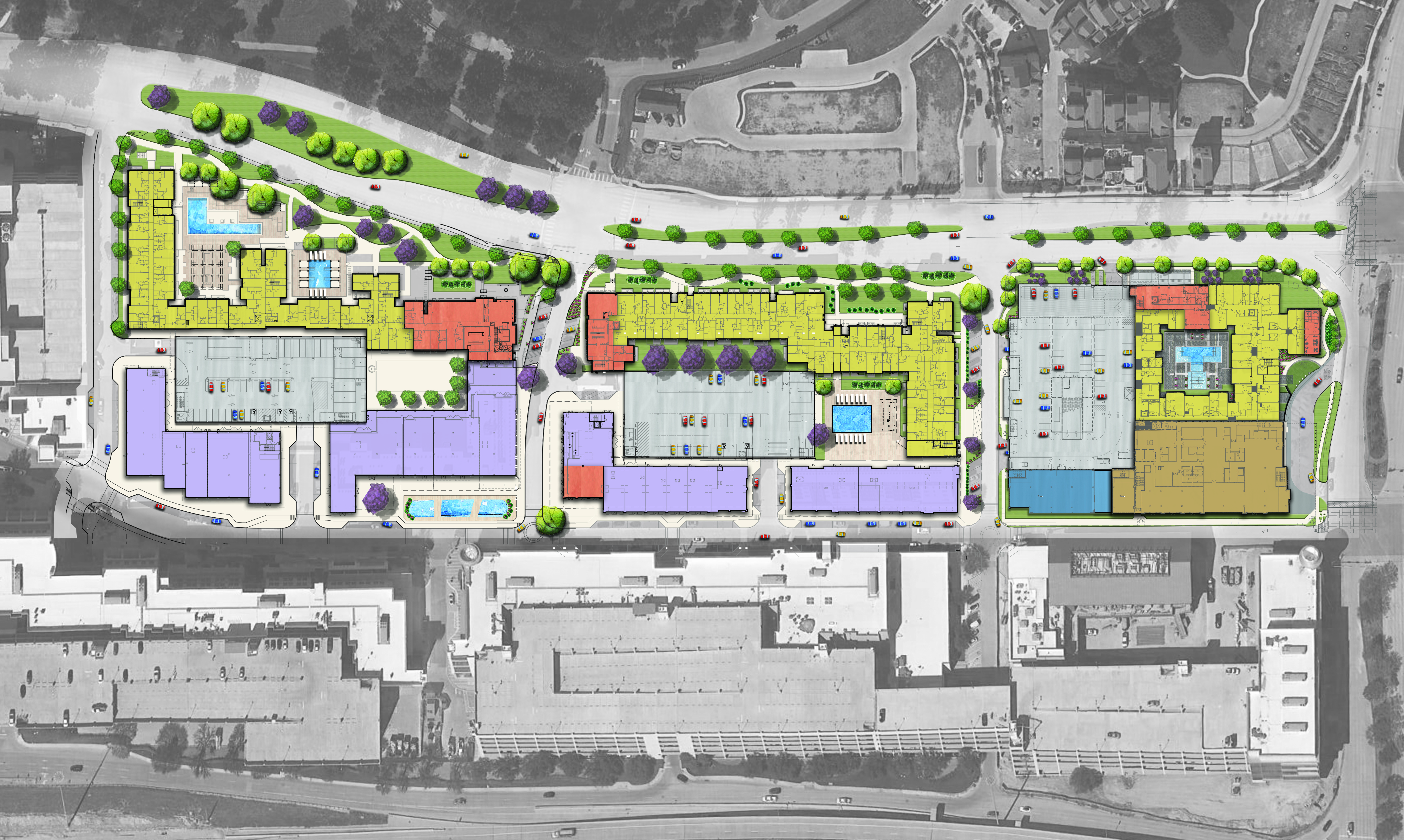

Instrata at Legacy West was designed to complete the final H Block within a dense, mixed-use district master planned by Gensler. Located at a primary gateway near Legacy Hall, the project needed to establish a clear residential identity while addressing active retail edges, heavy pedestrian traffic, and high visibility within the district.
Solution

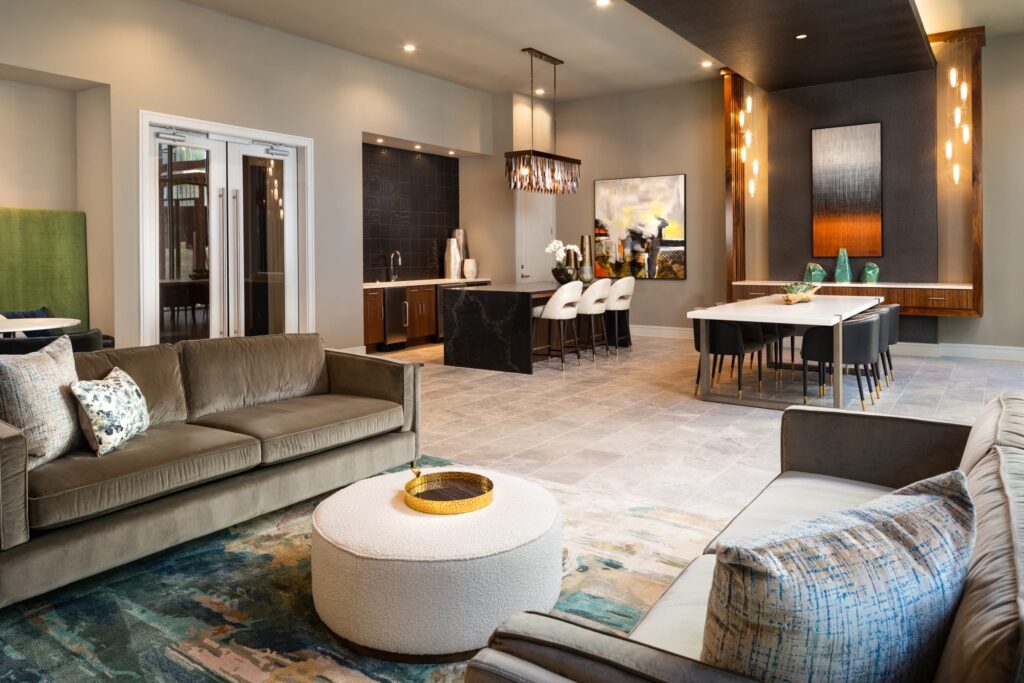

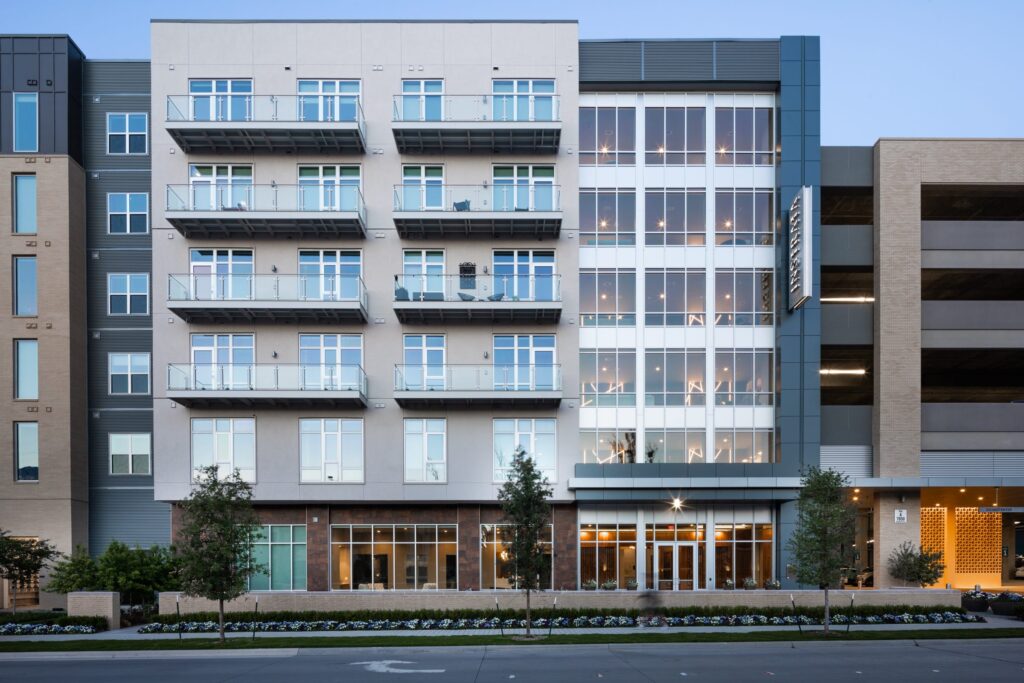

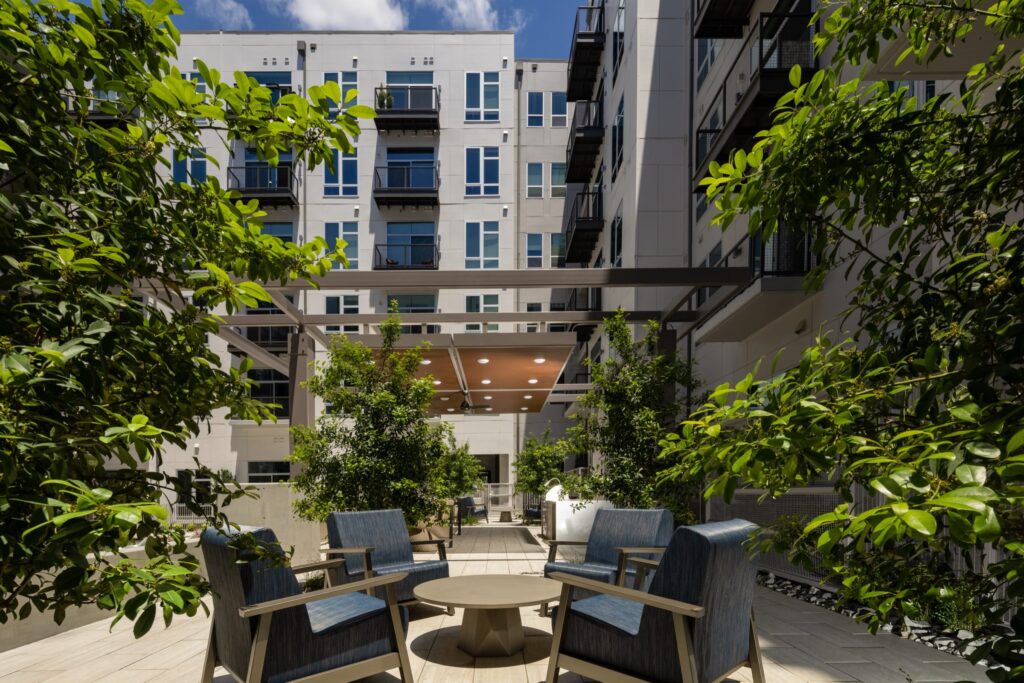

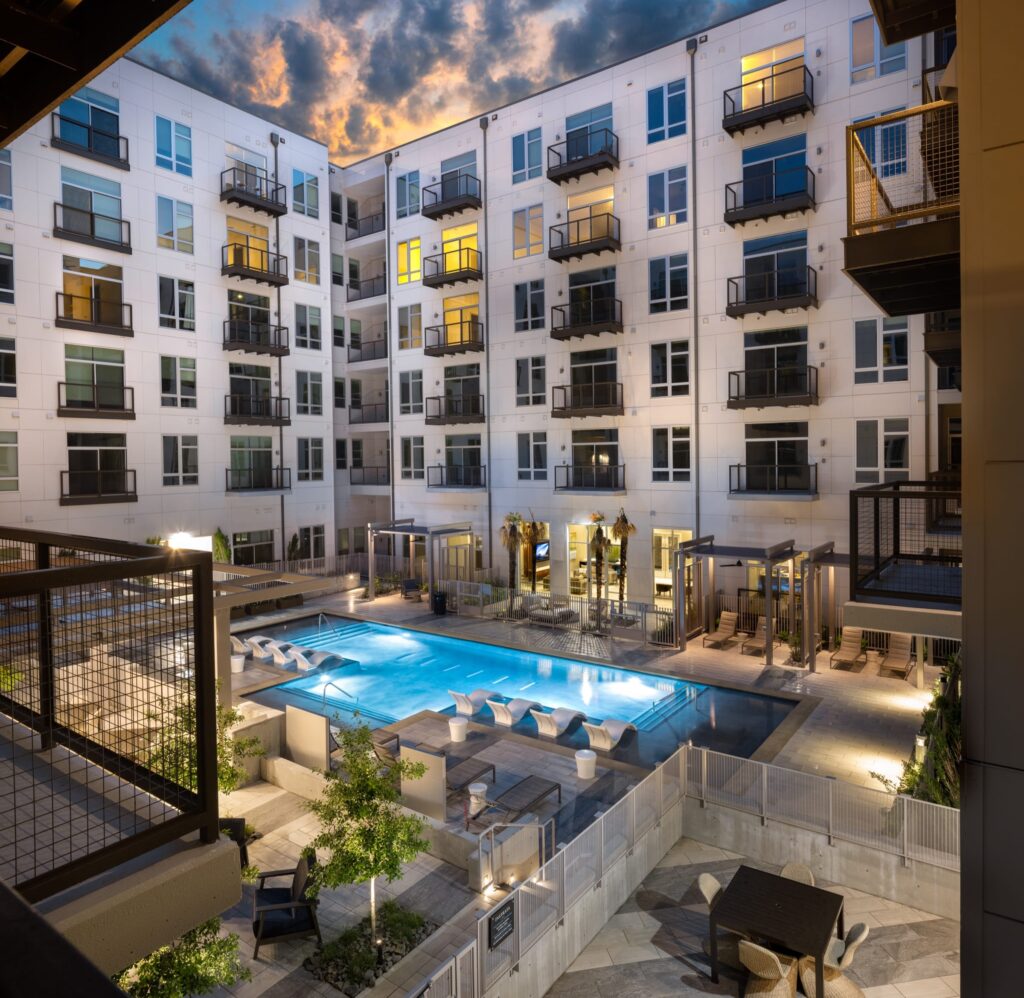

JHP designed a disciplined six-story residential building that reinforces the district framework while distinguishing itself from surrounding retail and entertainment uses. Activated ground-floor edges support walkability, while articulated façades, setbacks, and material transitions above create a calm, private residential character. Curated amenities–including concierge services, resort-style pool spaces, fitness and coworking areas, and pet-focused features–support a lifestyle-driven resident experience, complemented by high-quality interior finishes and generous daylight.
Impact
Instrata completes Legacy West masterplan with a refined residential anchor that clarifies the gateway condition and strengthens the district’s urban continuity. The project balances the energy of its mixed-use setting with a composed, livable environment, reinforcing Legacy West as a cohesive, walkable neighborhood.
